| Brand Name: | SMARTWEIGH |
| Model Number: | SCSP8003 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C,Western Union,MoneyGram |
| Supply Ability: | 100 Sets/Month |
|
—— TECHNIQUE SPECIFICATION —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
Product Name
|

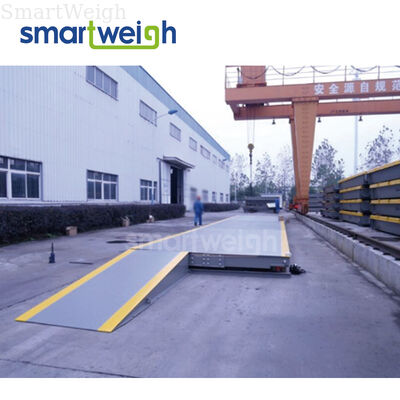

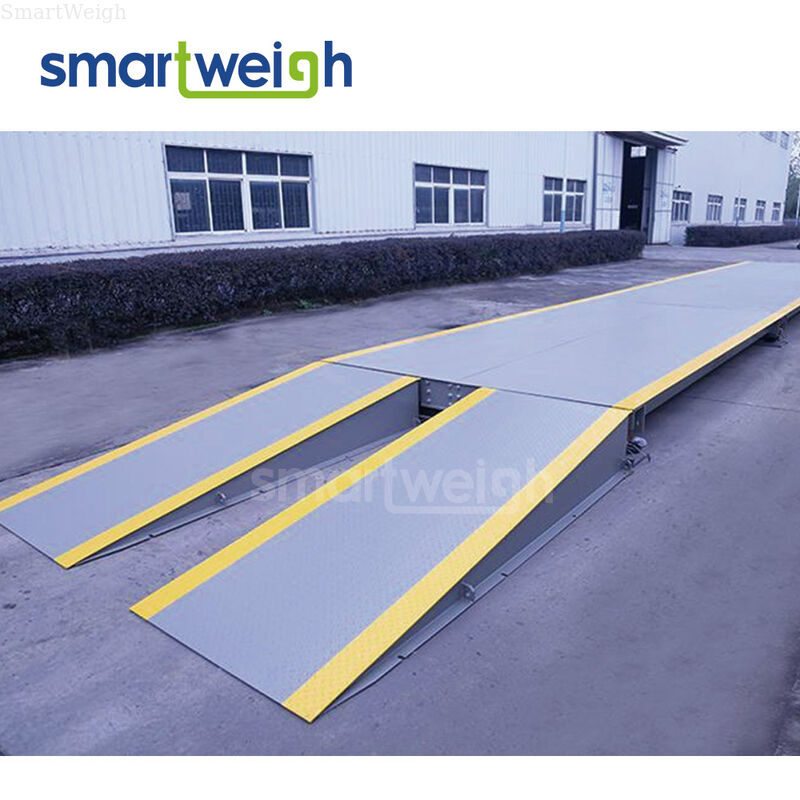

Durable Electronic Portable Weighbridge Mobile Truck Scale for Easy Installation |
|
Safe Overload
|
130% |
|
Capacity
|
60-150T |
|
Material |
Carbon Steel
|
|
Top Plate Thickness |
10mm/ 12mm/14mm |
|
Color |
Customized |
|
Accuracy |
OIML C3 |
|
Platform Width |
3m/3.2m/3.4m/4m/Customised |
|
Platform Length |
6~24m/Customised |
|
Surface |
Checkered/Smooth |
|
Beam/ Ribs No |
6 pcs
|
|
Power Supply |
AC 220V, DC 12V Battery Backup
|
|
Load Cell Type |
Single-point load cell or Multi-point load cell
|
|
Protection Class
|
IP65-68
|
|
Calibration
|
Digital calibration with built-in calibration weight
|
|
Temp
|
-10°C to +40°C
|
|
Type
|
Portable Weighbridge
|
|
—— PRODUCT DETAILS —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
—— STANDARD ACCESSORIES —— SMARTWEIGH INSTRUMENT CO., LTD. |
|

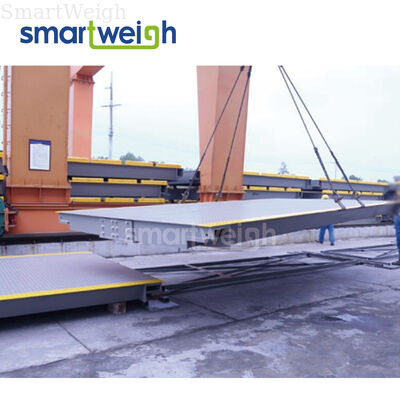

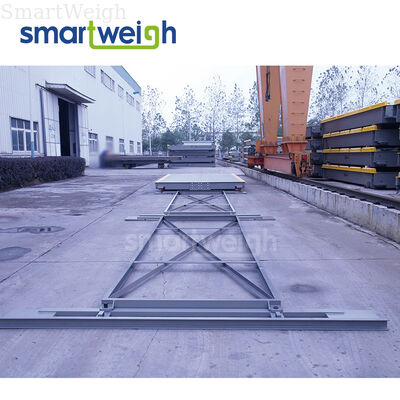

—— MANUFACTURING PROCESS —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
—— PRODUCT SIZE —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
Digital Weighbridge Scale Specification
|
|||||||||
|
Model
|
SCS-30
|
SCS-40
|
SCS-50
|
SCS-60
|
SCS-80
|
SCS-100
|
SCS-120
|
SCS-150
|
|
|
Size
|
|
||||||||
|
Capacity
|
30T
|
40T
|
50T
|
60T
|
80T
|
100T
|
120T
|
150T
|
|
|
Accuracy |
10kg
|
10kg
|
20kg
|
20kg
|
20kg
|
20kg
|
20kg
|
20kg
|
|
|
3.0×6M |
●
|
●
|
|||||||
|
3.0×8M |
●
|
●
|
|||||||
|
3.0×9M |
●
|
●
|
|||||||
|
3.0×10M |
●
|
●
|
|||||||
|
3.0×12M |
●
|
●
|
●
|
||||||
|
3.0×15M |
●
|
●
|
●
|
●
|
|||||
|
3.0×16M |
●
|
●
|
●
|
●
|
|||||
|
3.0×18M |
●
|
●
|
●
|
●
|
●
|
||||
|
3.0×20M |
●
|
●
|
●
|
●
|
|||||
|
3.2×12M
|
●
|
●
|
|
||||||
|
3.2×14M
|
●
|
●
|
●
|
|
|||||
|
3.2×16M
|
●
|
●
|
●
|
●
|
●
|
|
|||
|
3.2×18M
|
●
|
●
|
●
|
●
|
●
|
||||
|
3.2×20M
|
●
|
●
|
●
|
●
|
●
|
||||
|
3.4×14M
|
●
|
●
|
●
|
|
|||||
|
3.4×16M
|
●
|
●
|
●
|
●
|
●
|
●
|
|||
|
3.4×18M
|
●
|
●
|
●
|
●
|
●
|
||||
|
3.4×21M
|
●
|
●
|
●
|
●
|
●
|
||||
|
—— APPLICATION SHOWCASE —— SMARTWEIGH INSTRUMENT CO., LTD. |
|
—— PACKAGEING AND DELIVERY —— SMARTWEIGH INSTRUMENT CO., LTD. |
